Rug-Rel 10.1 Inch Rugged Tablet
Features
Support for Android lO system
Optional 3G/4G all network communication, Wi-Fi, Bluetooth and other communication modes
10000mAh battery, 10 hours of machine endurance
IP65 high protection level, in accordance with MIL-STD-8lOG
Support GPS, G, more accurate positioning
Rear 13 million pixel auto focus camera, easy to collect image and video information
Specifications
| BASIC PARAMETERS | Dimension | 280.4x187x 26.6mm | |
| Color | Black | ||
| Weight | Device unit 1014g | ||
| LCD | 10.1 inch IPS 16:10, 1200xl920, 700nits | ||
| Touch Panel | 10 point G+G capacitive touch screen Corning®Gorilla®Glass | ||
| Camera | Front 5.0MP Rear 13.0MP | ||
| I/O | HDMI 1.4a x 1,USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, l2pins Pogo Pin x 1,DB9 RS232 x 1, RJ45 x 1, Ω3.5mm standard earphone jack x 1, Ω3.5mm DC jack x l | ||
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A | ||
| COMMUNICATION | WiFi | WiFi 802.11 a/b/g/n/ac (2.4G+5G) | |
| Bluetooth | BT4.l - Transmission distance: l0m | ||
| 2G/3G/4G (Optional) | CMCC 4M: LTE Bl/B3/B5/B7/B8/B20/B38/B39/B40/B41WCDMAB1/B2/B5/B8 | ||
| GNSS | Support GPS+Glonass | ||
| PERFORMANCE PARAMETERS | CPU | ARM (OCTACore), 2.0GHz | |
| OS | Android10 | ||
| RAM | 4GB | ||
| ROM | 64GB | ||
| BATTERY | Capacity | 3.7V/l0000mAh | |
| Type | Li-Polyment, removable battery | ||
| Endurance | 10 hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default) | ||
| DATA COLLECTION | NFC | Built-in, 13.56MHz, Support ISO/IEC 14443A protocol Card reading distance:4cm | |
| 1D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s | ||
| 2D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s | ||
| RELIABILITY | Operating Temperature | -20°C~60°C | |
| Storage Temperature | -30°C~70°C | ||
| Humidity | 95% Non-Condensing | ||
| Rugged Feature | IP65 certified, MIL-STD-810G certified | ||
| Drop Height | 1.22m | ||

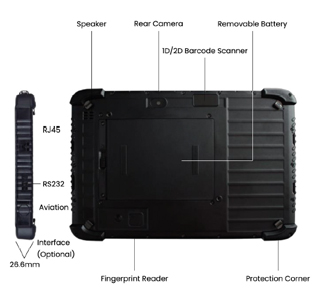

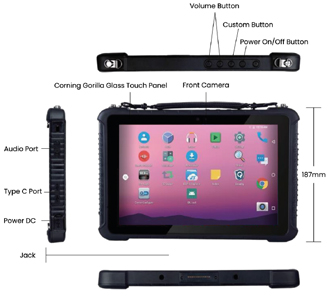

Dimensions
Accessories
Hand Strap
Back Strap
Stylus
Leather Cover
Vehicle Mount
Rug-Rel 12.2 Inch Rugged Tablet
Features
Support for Windows 10 & 11
Optional 3G/4G all network communication, Wi-Fi, Bluetooth and other communication modes
6300mAh battery for long time machine endurance
IP65 high protection level in accordance with MIL-STD-810G
Support GPS, Glonass for more accurate positioning
Rear and front auto focus camera, easy to collect image and video information
12.2 inch display with light weight design (1500 grams)
Specifications
| BASIC PARAMETERS | Dimension | 319.6*216*24.3 mm | ||
| Color | Black | |||
| Weight | Device unit 1500g | |||
| LCD | 12.2 inch IPS 16:10, 1200x1920, 700nits | |||
| Touch Panel | 10 point G+G capacitive touch screen Corning gorilla hardness above 7H, scratch resistant, support 930 handwriting | |||
| Camera | Front 5.0MP (MIPI) Rear 8.0MP (MIPI) | |||
| I/O | HDMI 1.4a x 1, USB 3.0x2, USB 2.0x1, USB Type-C x 1, SIM Card x 1, TF Card x1, 12 pins Pogo Pin x 1, DB9 RS232 x 1, RJ45 x 1, 03.5mm standard earphone jack x 1 | |||
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A | |||
| COMMUNICATION | WiFi | WiFi 802.11 a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI | ||
| Bluetooth | BT5.0 (BLE) class1 Transmitted distance: 10m | |||
| 2G/3G/4G (Optional) | MeiG 750 VE LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8;GSM: 900/1800 | |||
| GNSS | Support GPS+Glonass | |||
| CPU | Intel JASPER LAKE N5100 processor, 4-core 4-thread, embedded 4 MB SmartCache, TDP 6W, max frequency 2.8GHz | |||
| PERFORMANCE PARAMETERS | CPU | Intel JASPER LAKE N5100 processor, 4-core 4-thread, embedded 4 MB SmartCache, TDP 6W, max frequency 2.8GHz | ||
| GPU | Intel® HD Graphics Gen 11 LP | |||
| RAM | 4GB | |||
| ROM | 128GB | |||
| BATTERY | Capacity | 7.4V/6300mAh | ||
| Type | Li-Polyment, removable battery | |||
| Endurance | 8.5 hrs (50% volume sounds, 50% screen brightness, 1080P HD video display by default) | |||
| RELIABILITY | Operating Temperature | -20 °C ~ 60 °C | ||
| Storage Temperature | -30 °C ~ 70 °C | |||
| Humidity | 95% Non-Condensing | |||
| Rugged Feature | IP65 certified, MIL-STD-810G certified | |||
| Drop Height | 1.22m | |||

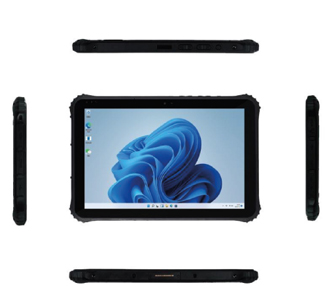

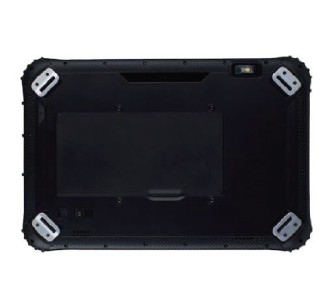

6 VIEWS - RZ 04
Accessories
Hand Strap
Back Strap
Stylus
Leather Cover
Vehicle Mount
RZ-I86HH Rugged Tablet
Salient Features
Windows 10 OS
Intel Atom 1.92GHz Quad core Processor
8500mAh massive battery
4+64GB Storage Capacity
Optional professional 1D/2D Scanner
Rich Use functions
IP67 high protection level
Technical specification :
Screen Size: 8 Inch
Model : RZ-186HH
CPU : Intel Atom 1.92GHz Quad core processor
OS : Windows 10
Dimension : 225.6*144.6*21.5mm
Weight : Bare Mchine 715:g|Add package & Accessories:1400g Dacking charger:290g
RAM : 4GB
ROM: 64GB Optional 128GB
Screen: 8" IPS
Resolution : 1280*800/1920*1200
Brightness : 550Nit/400Nit
Camera: 2mp+5Mp
Battery : 8500mAh/3.7V/7800mAh/3.7V(4G)
Windows 7 / 8.1 / 10.
Battery Life : Around 8hours
Communications : WiFi 5/BT4.2/4G
NFC : Optional
Barcode Scanner : Optional
USB : USB 2.0*1/Micro USB*1
I/O Interface : Earphone jack*1/Power input*1/HDMI*1/Sim card slot*1/TF card slot*1/pogo pin*1
Robustness : MIL-STD-810G|IP 67|Drops from 1.2mm
Operating Temparature : -20°c to 60°c
Storage Temparature : -30°c to 70°c
GNSS : GPS
Accessories : Docking Charger,hand-strap,shoulder-strap,back-strap,vehicle-mount
RZ-Q86 Rugged Tablet
Salient Features
Qualcomm Snapdragon octa-core Processor
Android 10 OS
8500mAh massive battery
4+64GB Storage Capacity
Front 5MP/Rear 13MP Camera
Optional professional 1D/2D Scanner
Rich use functions
IP67 High protection level
Technical specification :
Screen Size: 8 Inch
Model : RZ-Q86 (GMS)
CPU : Qualcomm 2.0GHz octa-core processor
OS : Android 10
Dimension : 225.6*144.6*21.5mm
Weight : Bare Mchine 715:g|Add package & Accessories:1330g Dacking charger:290g
RAM : 4GB
ROM: 64GB
Screen: 8" IPS,gorilla glass
Resolution : 1280*800/1920*1200
Brightness : 550Nit/450Nit/700Nit
Camera: 5Mp+13Mp
Battery : 8500mAh/3.7V
Windows 7 / 8.1 / 10.
Battery Life : Around 8hours
Communications : WiFi 5/BT4.2/4G
NFC : standard
Barcode Scanner : Optional
USB : USB 3.0*1/Type-C*1
I/O Interface : Earphone jack*1/Power input*1/HDMI*1/Sim card slot*1/TF card slot*1/pogo pin*1
Robustness : MIL-STD-810G|IP 67|Drops from 1.2mm
Operating Temparature : -20°c to 55°c
Storage Temparature : -30°c to 70°c
GNSS : GPS+GLONASS
Accessories : Docking Charger,Leather Case,hand-strap,shoulder-strap,back-strap,vehicle-mount
RZ-Q865M Rugged Tablet
Salient Features
Qualcomm Snapdragon octa-core Processor
Android 11 OS
8500mAh massive battery
WiFi 5/BT4.2/5G network support
Front 5MP/Rear 13MP Camera
Optional professional 1D/2D Scanner
Rich use functions
IP67 High protection level
Technical specification :
Screen Size: 8 Inch
Model : RZ-Q865M (GMS)
CPU : Qualcomm 2.0GHz octa-core processor
OS : Android 11
Dimension : 225.6*144.6*21.5mm
Weight : Bare Mchine 715:g|Add package & Accessories:1330g Dacking charger:290g
RAM : 4GB Optional 6GB
ROM: 64GB Optional 128GB
Screen: 8" IPS,gorilla glass
Resolution : 1280*800/1920*1200
Brightness : 550Nit/750Nit
Camera: 5Mp+13Mp
Battery : 8500mAh/3.7V
Windows 7 / 8.1 / 10.
Battery Life : Around 8hours
Communications : WiFi 5/BT4.2/4G/5G Optional
NFC : standard
Barcode Scanner : Optional
USB : USB 3.0*1/Type-C*1
I/O Interface : Earphone jack*1/Power input*1/HDMI*1/Sim card slot*1/TF card slot*1/pogo pin*1
Robustness : MIL-STD-810G|IP 67|Drops from 1.2mm
Operating Temparature : -20°c to 55°c
Storage Temparature : -30°c to 70°c
GNSS : GPS L1&L5/Beidou/Glonass/Galileo/Navic/IRNSS
Accessories : Docking Charger,Leather Case,hand-strap,shoulder-strap,back-strap,vehicle-mount
