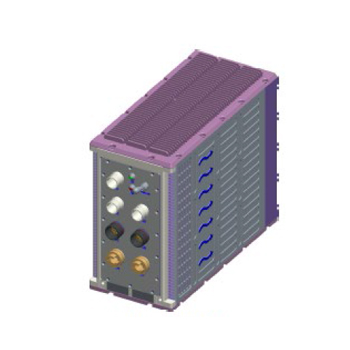

0313-000-165 ANTI DRONE’S RADAR COMPUTER

The Radar Computer (RC) will be used in Anti Drone System. It has been designed in compliance with MIL-461E and MILSTD-810G. It is highly compact, lightweight, ideal for outdoor harsh environments

The Radar computer primarily consists of 2 Nos of Single Board Computer (SBC), GPGPU module and a Power supply module. Among the 2 Nos of SBCs, One No of SBC is dedicated for Signal Processing (which is Windows 10 based OS) and second SBC is dedicated for Radar Data Processing & Radar controller (which is Linux based OS) functions.

Radar processing and Signal processing algorithms of RC will be used for tracking drones, tracing and killing of deleterious drones with the great accuracy. Range of the radar will be about 5kms.

The Radar computer will be interfaced with the Exciter– Receiver (Ex-Rx) with expanded beam optical connectors. The data received from the antenna will be sent to RC through ExRx. sFPDP converts Optical signals into the electrical signals.

Key Features

 Compact design
  2 Nos of Xeon – Based Single Board Computer
  Embedded with sFPDP card used for signal processing.
  SBC will be connected to GPGPU through PCIe
 Rugged Construction to meet MIL Standards
 USB/Ethernet / RS232/R485 Connectivity
 Connector for External Display Interface
 Connector for External Ex-Rx_ALNS.

TECHNICAL SPECIFICATION:

ELECTRICAL SPECIFICATION:

MECHANICAL SPECIFICATION:

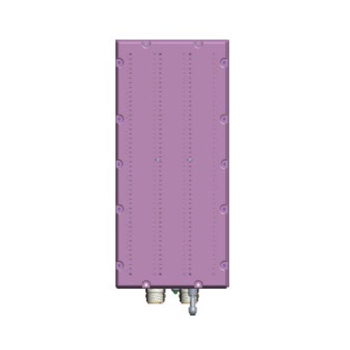

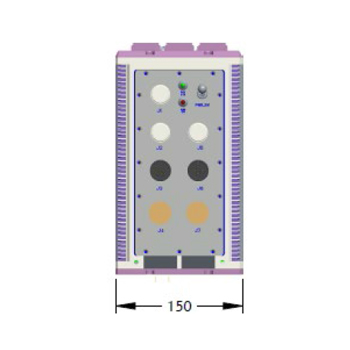

MECHANICAL DIMENSION:
