METHODOLOGY
We Design, Manufacture, Supply, Erect and Commission Effluent Treatment Plant (ETP) on Turnkey basis for various types and natures of wastewaters and effluents.
We analyze the effluent samples for different effluent parameters as per nature and compositions, carry out treatability studies by using different methods by checking techno-commercial Feasibility and then design treatment schemes and process to suit the purpose and need.
Typical Treatment Steps
Gravity Separator/ O&G Trap : To remove suspended oil and grease, floating matters.
Primary Sedimentation : To remove the heavy grit particles, suspended solids.
Advanced chemical treatment : To adjust PH, remove organic and inorganic heavy metals.
Biological treatment (optional) : To remove organic matter.
Advance Sludge Separation : To remove the suspended Solids, organic matter.
Ozonization : To remove organic matter.
Micro filtration (UF + RO) : To achieve zero discharge (If required).
Applications
Automobile Industry
Chemical Industry
Metal Pretreatment
Electroplating
Pharmaceutical
Textile
Paper Mills
Dairies
Sugar Mills
Leather Industries
Petrochemical and many more …
Salient Features:
Very cost effective : Less initial Investment.
Types:Batch and Continuous.
Atomization: Manual, Semi-automatic and Fully-automatic.
Very cost effective : Less initial Investment.
Compact and proven design : Required very low foot print.
Salient Features:
Quality Components and Mounting items: Special sludge pump and total corrosion free UPVC piping & FRP/Epoxy Lined MS tanks.
Water Recycle: Recycling with advanced treatment methodologies like UF and RO.
Salient Features:
Operation and Maintenance: Very silent and operation and any unskilled person can operate it after proper training.
Flexible design: Starting from 0.5 m3/day to 500 m3/day capacities.
Recurring Expenses: Economical plant operation cost, required regular treatment chemicals available in the market.

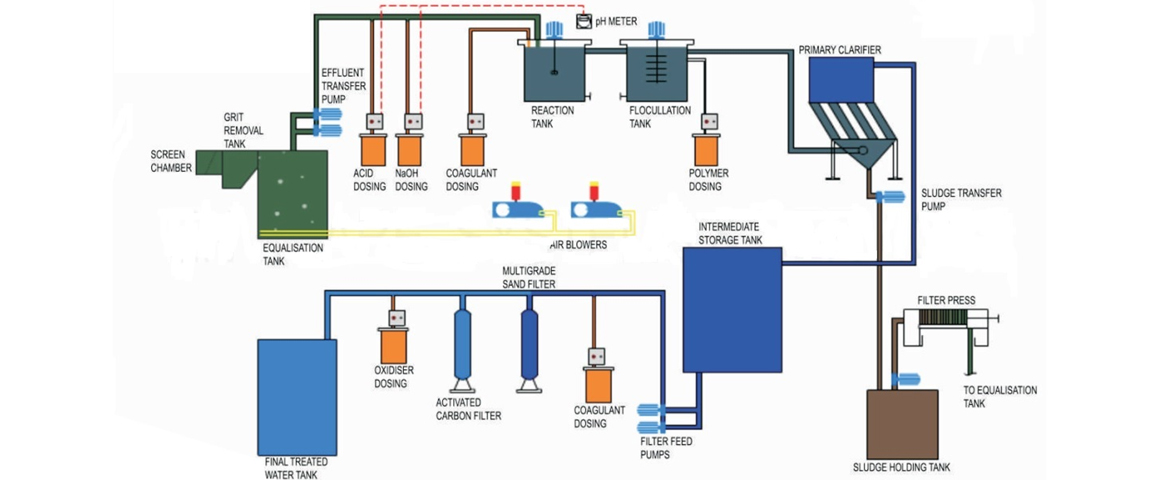

ETP Continuous Type ( Only Chemical Treatment)
